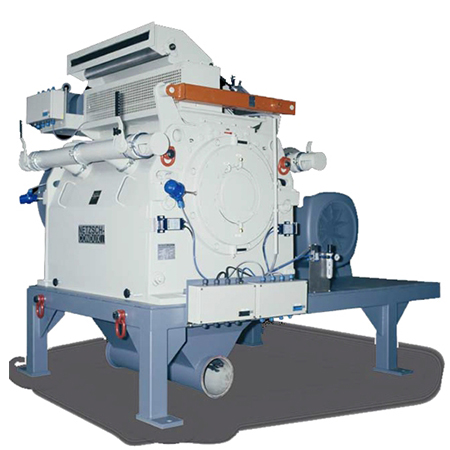

CONDUX CS-Z Cutting Mill

CONDUX CS-Z Cutting Mill


  • size reduction by cutting of non-friable and soft products in a range of 90–2000 μm,
  • possible applications: cellulose, wood fibers, rubber, scrap paper, leather, textiles, carbon fibers, PES film, TPU, unvulcanized rubber.



  • cutting with a 16-knife-disc rotor and stator knife assembly in the housing,
  • open rotor design improves the airflow and enables gentle milling action,
  • special screen inserts can be used to achieve required grain sizes,
  • product is fed into the cutting chamber either by gravity or via a nip roll system,
  • different type knives can be mounted on the rotor and stator,
  • pressure shock resistant designs also available,
  • inert processing is possible with a gas-tight version,
  • water cooled housing designs are available.
