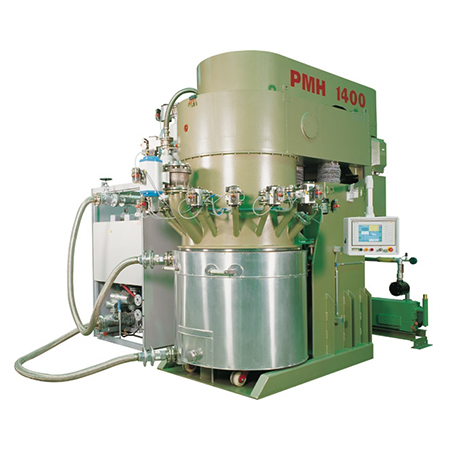

PMH/PML Planetary Mixing and Kneading Machines

PMH/PML Planetary Mixing and Kneading Machines


  • adhesives, silicone pastes, sealants, lubricants, dental wax and powder reagents,
  • PVC pastes, rubber pastes.



  • mixing and kneading machine for high viscosity products (up to 10.000 Pas),
  • available in two variants: PML (Planetary Mixer Low Speed) and PMH (Planetary Mixer High Speed),
  • the PML version has two slow running mixing tools (driven via a planetary gear system) and a scraper,
  • the PMH version has a slow speed flow blade stirrer plus a separately driven high-speed dispersing disk,
  • easily exchangeable mixing and dispersing tools ensure optimal processing,
  • options include: explosion-proof design, vacuum-tight design, the Tank Press-Out System.


Planetary mixers are used to process thick and viscous products (up to 10.000 Pas). The PML/PMH units make use of planetary gearing. Rotating mixing components are used to produce rotary movement in a stationary tank while going through the entire product volume being mixed. In addition to that, product is conveyed by a moving scraper to zones with high mixing and kneading intensity.
